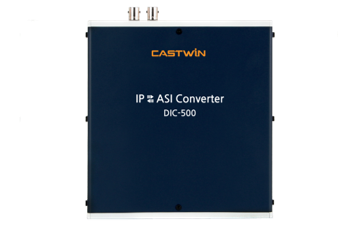

ASI to IP Converter
DIC-500- Excellent tunneling of ASI signals over the TCP/IP network
- User can customize all monitoring and switching rules to meet Broadcast, Cable, Satellite, and IPTV needs
ASI to IP Converter
Introduction
DIC-500 is a complete cost-effective solution to transform IP to ASI and backwards ASI to IP with GigE interface just in one device.
Hi-class front VFD makes it easy to set-up and operate.
Features
- Converts MPEG-2/4 AVS TS over IP networks to DVB-ASI
- Converts MPEG-2/4 AVS TS as DVB-ASI to IP
- Input : 1 x DVB-ASI and 1 x GigE IP
- Output : 1 x DVB-ASI and 1 x GigE IP
- 7 TS from IP [MPTS (7TS), SPTS]
- 216 Mbps birrate of DVB-ASI
- Zero Latency
- Unicast and Multicast IP addressing
- Autonomous IP to ASI gateway
- With DIC-500 Tunneling of ASI signals over LAN, WAN or the internet
- Remote ASI output adapter for server based data inserters, stream servers, multipleers and similar systems
- Web-GUI Control
Specification
Key Attributes
- GigE Port
- Physical Layer
- IEEE 802.3a
- Data rate
- 10/100/1000
- Connector
- RJ-45
- ASI Port
- Physical Layer
- DVB-ASI (coax)
- Connector
- 75Ω BNC(2x)
- Transport
- TS bitrate
- < 214 Mbit/s
Control
- IP-address assignment
- DHCP or Static
- Multicast support
- IGMP v2
- Front panel control
General
- Power Requirements
- DC 5V 2A
- Weight
- 0.5 kg
- Dimensions(W x L x H)
- 148 x 170 x 35 mm
