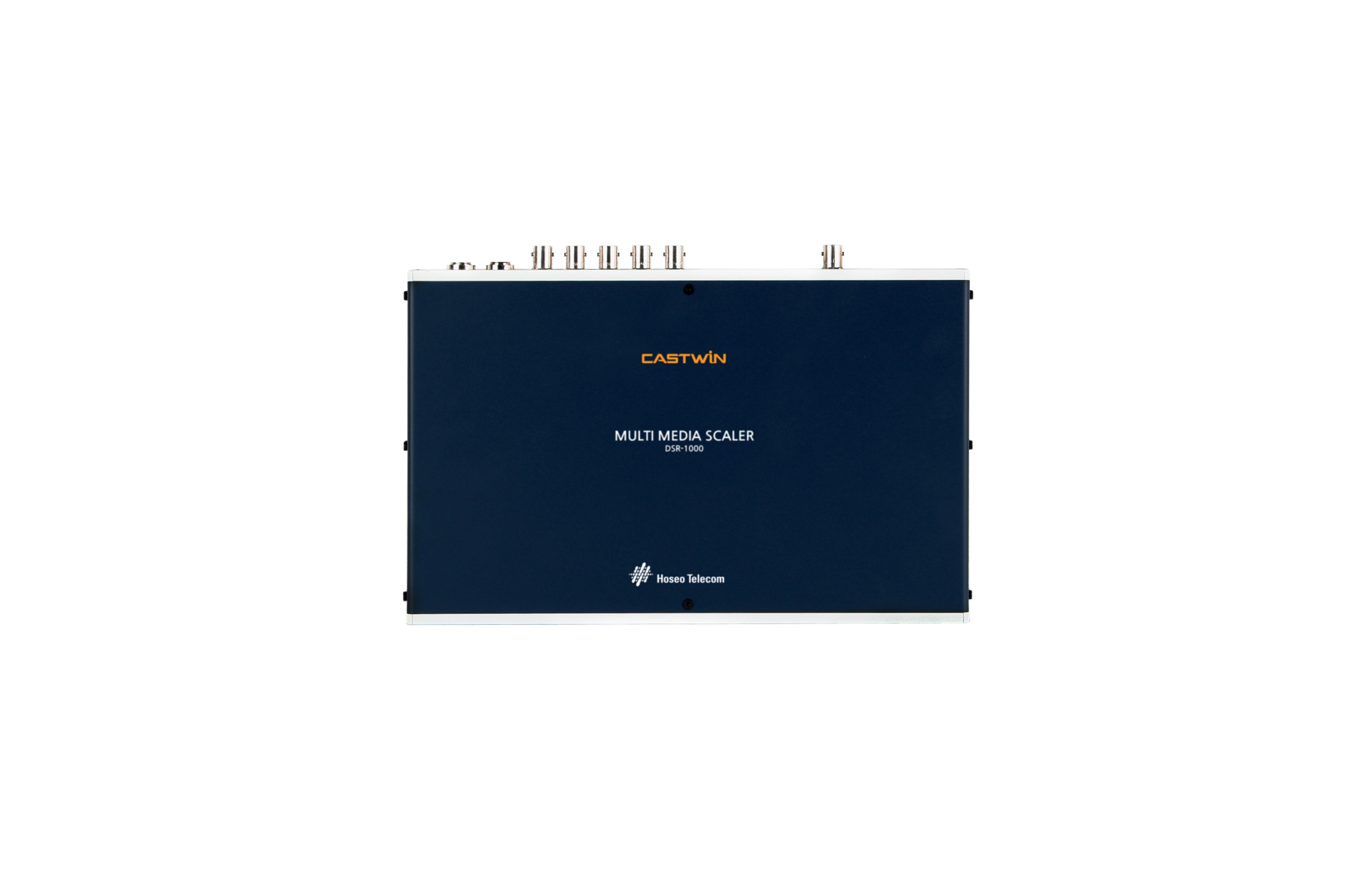

Multi Media Scaler
DSR-1000- HDMI, 3G/HD/SD-SDI, Component, Composite
- HDMI, 3G/HD/SD-SDI
- 480i, 576i, 720p, 1080i, 1080p
- HDMI, 3G/HD/SD-SDI Supports
Multi Media Scaler
Introduction
Component, Composite, HDMI, 3G/SD/HD-SDI 등 다양한 입력 신호를 받아 다양한 Digital Format으로 변환 출력하는 Scaling 기능이 내장된 Cross Converter이다.
Video Frame Rate 조정이 가능하며, Resolution, Image Enhance, Noise 제거, 색상보정, 감마보정 등의 Video Processor를 내장하여 고품질의 비디오 변환이 가능한 고성능 Multi Scaler 이다.
Features
- Inputs : HDMI, 3G/HD/SD-SDI, Component, Composite
- Outputs : HDMI, 3G/HD/SD-SDI,
- Selectable Output Resolution
480i, 576i, 720p, 1080i, 1080p
- HDMI, 3G/HD/SD-SDI Supports
- 2 Channel Mini XLR Audio Inputs Interface
- AES/EBU(BNC), Analog L/R Audio Input Interface
- HDMI V1.3 Standards Support
- Upload and Configuration via USB2.0
- HDMI/SDI Dual Output
Specification
Scalar
- Max Input Video Resolution
- 1920x1080@60p
- Max Output Video Resolution
- 1920x1080@60p
- Frame-rate-conversion
- 23.98p/24p/25i/25p/29.97i/29.97p/
Video Input
- Analog Input
- Composite, Component
- Digital Input
- HDMI, 3G/HD/SD-SDI
- Resolutions
- 480i(29.9/30), 576i(25), 720p(50/59.94/60)
- 1080i(25/29.97/30)
- 1080p(23.98/24/25/29.97/30/50/59.94/60)
- Impedance
- 75 Ω
- Aspect Ratio
- 4:3, 16:9
- Analog
- Composite, Component
- Digital
- HDMI,SD/SDI,3Gb/s SDI
Audio Input
- Analog Input
- Stereo
- Frequency Range
- 20Hz~20KHz
- Impedance
- 600Ω / 20k Ω
- Connector
- Mini XLR
- Digital Input
- ASE/EBU, Embedded HDMI/SDI
- Sampling Rate
- 32, 44.1 & 48 KHz
- Connector
- HDMI-19PIN,BNC(75Ω)
SDI Output
- Compliance
- SMPTE-259/272/274/292/296/299/424
- Video Rates
- 4:02:02
- Data Rates
- SD-SDI : 270Mbps
- HD-SDI : 1.5Gb/s & 3Gb/s
- Color Space
- YUV
HDMI Output
- Color Precision
- 4:2:2, 4:4:4, RGB
- Version
- V1.3 Standard
Video Output
- Digital Output
- HDMI, 3G/SD/HD-SDI
- Impedance
- 75 Ω
- Aspect Ratio
- 4:3, 16:9
General
- Power Requirements
- DC 12V
- Power Consumption
- 13W
- Weight
- 0.74Kg
- Dimensions (WxDxH)
- 270x170x35mm
